The various tools and equipments used in “Bench Work and Fitting” are described in this application with theory and self explanatory images.

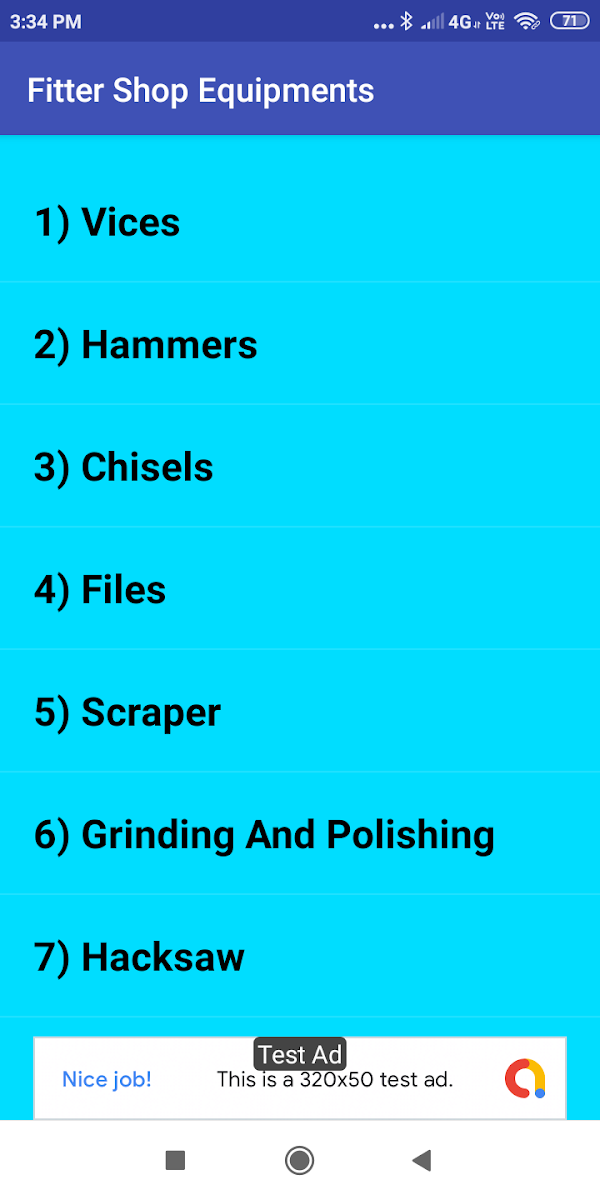

The various tools and equipments covered in this application are as follows:

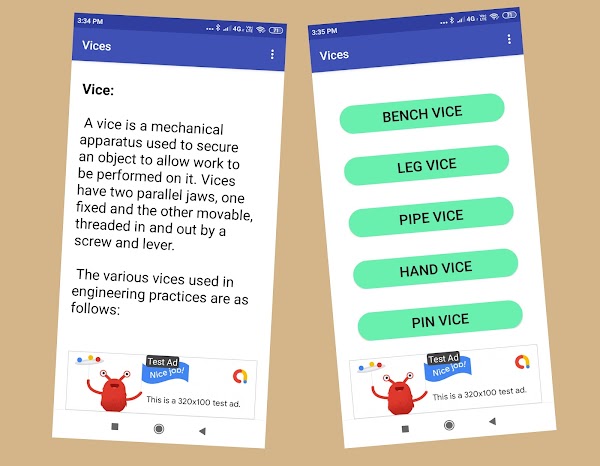

1) VICES

- Bench Vice

- Leg Vice

- Pipe Vice

- Hand Vice

- Pin Vice

- Toolmaker’ Vice

2) HAMMERS

- Ball Peen Hammer

- Cross Peen Hammer

- Straight Peen Hammer

- Soft Hammer

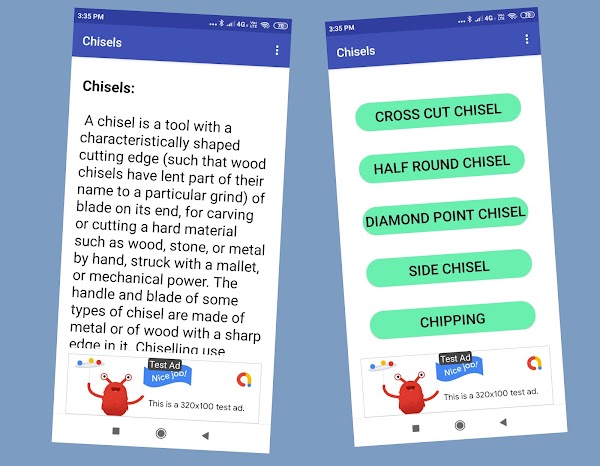

3) CHISELS

- Flat Chisel

- Cross Cut Chisel

- Half Round Chisel

- Diamond Point Chisel

- Side Chisel

4) FILES

- Flat File

- Hand File

- Square File

- Triangular File

- Half Round File

- Round File

- Knife Edge File

5) SCRAPER

- Flat Scraper

- Triangular Scraper

- Half Round Scraper

6) HACKSAW

- Hand Saw

- Power Saw

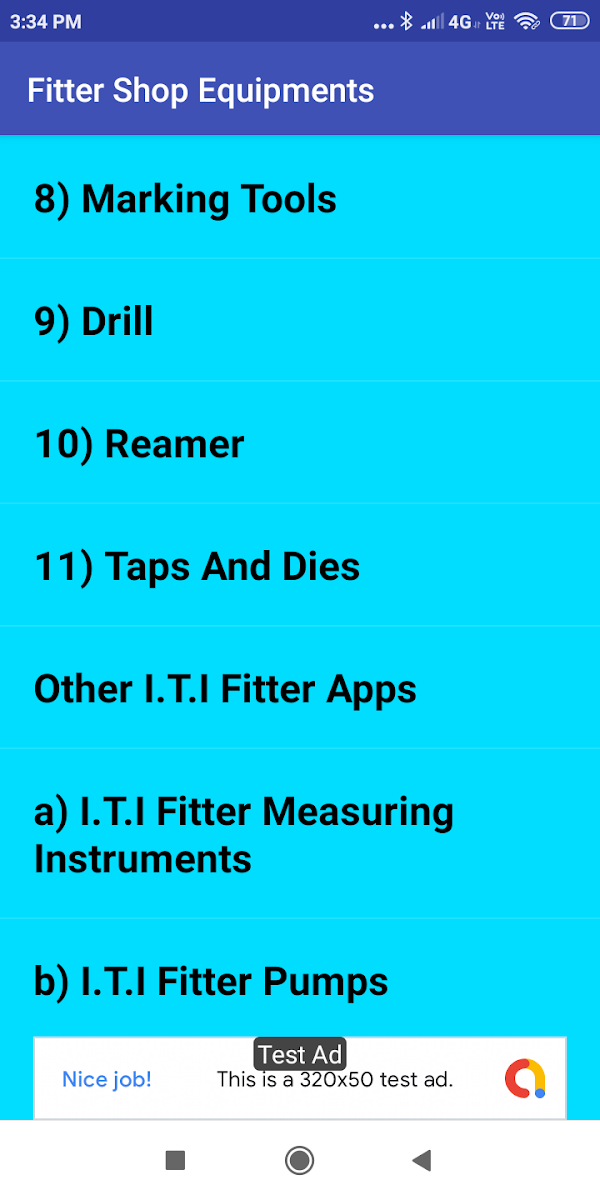

7) MARKING TOOLS

- Surface Plate

- Scriber

- Punch

- V Block

- Angle Plate

- Try Square

8) Drill

- Flat Drill

- Straight Fluted Drill

- Twist Drill

9) REAMER

- Hand Reamer

- Machine Reamer

- Expanding Reamer

10) TAPS AND DIES

The various operations explained in this application are as follows:

- CHIPPING

- FILING

- SCRAPING

- GRINDING AND POLISHING

- SAWING

- DRILLING

- REAMING

- TAPPING

- DIEING
